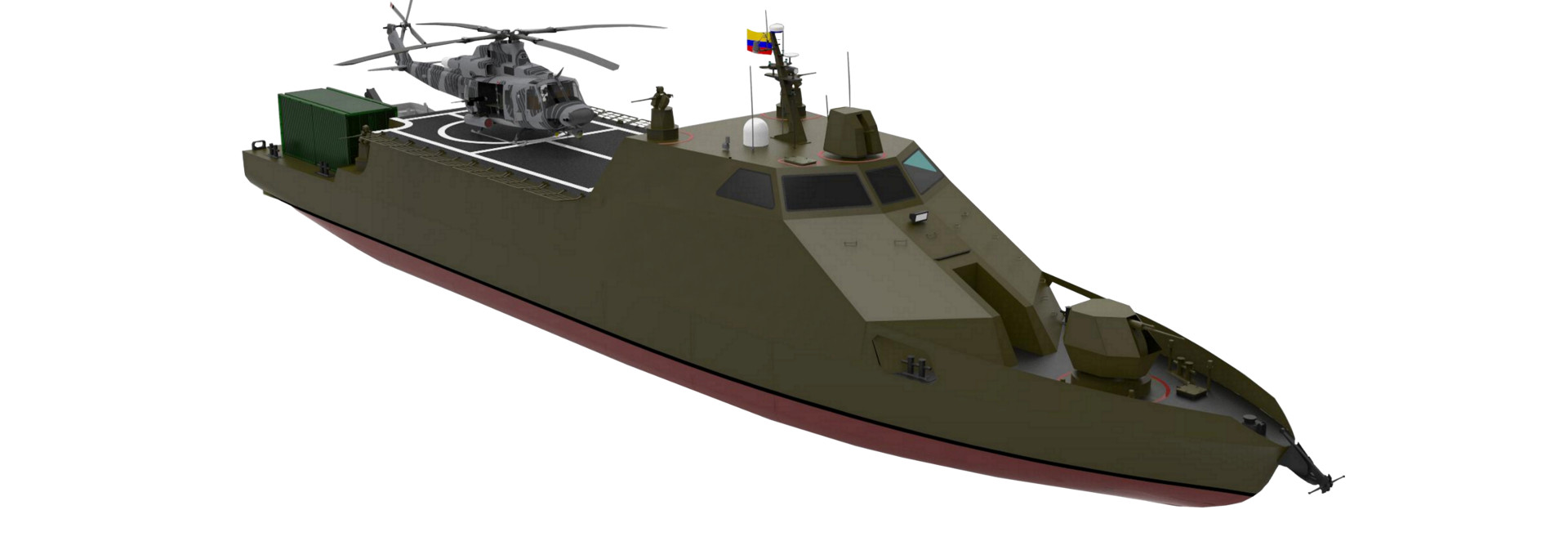

PAF-A
Military river ship with capabilities for border control, river security, search & rescue, environmental control and humanitarian aid operations.
Main Dimensions
| Total length: |
53.10 m |
| Molded Breadth: |
9.5 m |
| Design draft: |
1.5 m |
| Depth: |
3.10 m |
| Displacement: |
465.17 t |
Performance
| Maximum |
15 knots |
| Speed: |
5556 km @ 10 knots |
| Autonomy: |
20 days, 61 people |
Propulsion
| Engines: |
02 Diesel engines x 1081bkW@2100 RPM |
| Propellers: |
03 water jet propellers 1000bkw@1030 RPM |
Power Generator
| Main generator: |
Two 118 kW Generators -230VAC@60Hz |
| Emergency generator: |
One 105kWGenerator -230VAC@60Hz |
Capabilities
| Diesel Fuel: |
58 m³ |
| JP5 Jet Fuel: |
5 m³ |
| Gasoline: |
11 m³ |
| Fresh Water: |
25.5 m³ |
| Container Cargo: |
1TEU |
Accommodation Area
| Fixed crew: |
43 people |
| Floating crew: |
22 people |
| Hospitalization: |
04 people |
Weapons
| Main deck - Bow: |
One 25 mm gun |
| Deck 02- Bow: |
01 M19 Grenade Launcher |
| Deck 02- Stern: |
Two .50 Machine guns |
| Main deck - Bow: |
One .50 Machine gun |
